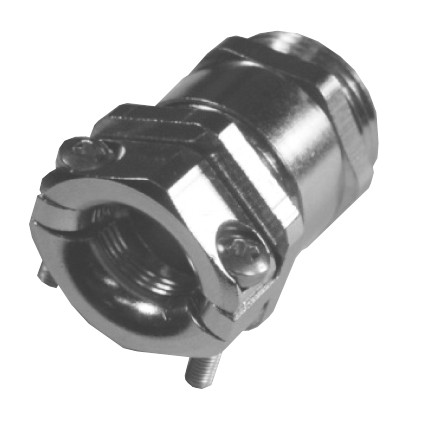

Nickel-plated brass PG cable glands, hexagonal lower part, with central-acting strain-relief and beding protection
Application
Cable glands
PG or metric
PG
Material
Brass
Protection
IP54
| Partnumber | Cable diameter | Size | Sealing ring int. Ø | Clamping range |
|---|---|---|---|---|
| mm | ||||
| 18008227 | 33 to 35 | PG36 | 34 | 24 to 36 |
| 18008224 | 12 to 14 | PG16 | 13 | 11 to 17 |
| 18008223 | 10 to 12 | PG13.5 | 11 | 8.5 to 14 |
| 18008225 | 17 to 19 | PG21 | 18 | 12 to 22 |
| 18008226 | 26 to 28 | PG29 | 27 | 18 to 30 |
| 18008229 | 43 to 45 | PG48 | 44 | 35 to 48 |
| 18008220 | 4 to 6 | PG 7 | 5 | 5.5 to 7 |
| 18008222 | 8 to 10 | PG11 | 9 | 7.5 to 11.5 |
| 18008221 | 8 to 10 | PG 9 | 9 | 6.5 to 10 |
| 18008228 | 39 to 41 | PG42 | 40 | 31 to 43 |
