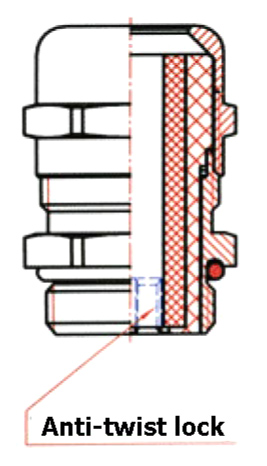

Nickel-plated brass PG cable glands, hexagonal lower part, IP68. With special sealing and variable inserts, O-ring at external thread. Gas and watertight. Resistant to oil, weather ,ageing and high temperature.
Application
Cable glands
PG or metric
PG
Material
Brass
Protection
IP68
Resistant against
Ageing Gas Mechanical stress Oil Water Weather
Temperature
-40 to 120
| Partnumber | Cable diameter | Size | SW | Length of thread (I1) |
|---|---|---|---|---|
| mm | ||||
| 18008303 | 11 to 15 | PG16 | 24 | 6.5 |
| 18008305 | 22 to 28 | PG29 | 40 | 8 |
| 18008300 | 5 to 10 | PG 9 | 17 | 6 |
| 18008306 | 28 to 36 | PG36 | 50 | 9 |
| 18008302 | 9 to 14 | PG13.5 | 22 | 6.5 |
| 18008301 | 5 to 10 | PG11 | 20 | 6 |
| 18008304 | 13 to 19 | PG21 | 30 | 7 |
