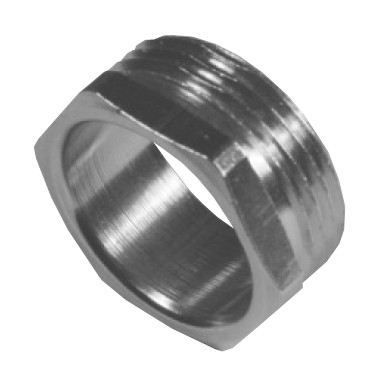

Nickel-plated brass PG hexagonal reduction adapters
Application
Adapter
PG or metric
PG
Material
Brass

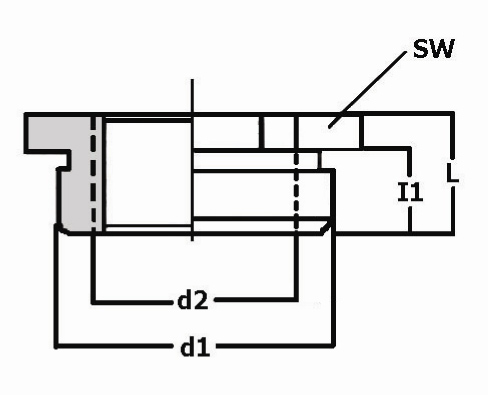

| Partnumber | Thread outside | Thread inside | SW | Length of thread (I1) | L |
|---|---|---|---|---|---|
| 18009713 | PG16 | PG 9 | 24 | 6.5 | 9.5 |
| 18009721 | PG36 | PG21 | 50 | 9 | 12.5 |
| 18009718 | PG21 | PG16 | 30 | 7 | 10 |
| 18009714 | PG16 | PG11 | 24 | 6.5 | 9.5 |
| 18009716 | PG21 | PG11 | 30 | 7 | 10 |
| 18009720 | PG29 | PG21 | 40 | 8 | 11.5 |
| 18009722 | PG36 | PG29 | 50 | 9 | 12.5 |
| 18009710 | PG11 | PG 9 | 20 | 6 | 8.5 |
| 18009712 | PG13.5 | PG11 | 22 | 6.5 | 9 |
| 18009711 | PG13.5 | PG 9 | 22 | 6.5 | 9 |
| 18009715 | PG16 | PG13.5 | 24 | 6.5 | 9.5 |
| 18009719 | PG29 | PG16 | 40 | 8 | 11.5 |
| 18009717 | PG21 | PG13.5 | 30 | 7 | 10 |
