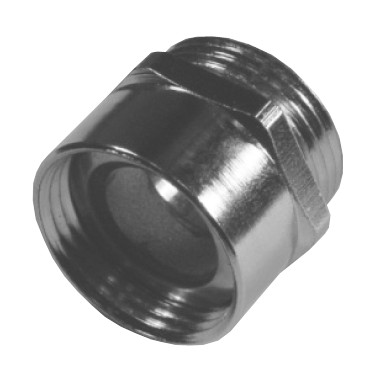

Nickel-plated brass hexagonal PG adapters, standard thread
Application
Adapter
PG or metric
PG
Material
Brass

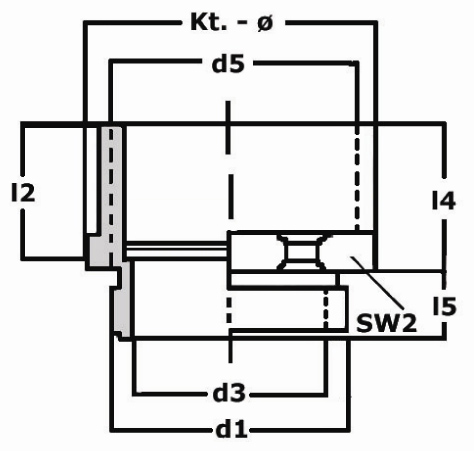

| Partnumber | Thread outside | SW | Outer Ø | d3 | I2 | I4 | I5 |
|---|---|---|---|---|---|---|---|
| 18021657 | PG36 | 50 | 54 | 42 | 17.5 | 19.5 | 9 |
| 18021654 | PG16 | 24 | 26.7 | 18.5 | 12.6 | 13.6 | 6.5 |
| 18021652 | PG11 | 20 | 22.2 | 15 | 10 | 11 | 6 |
| 18021653 | PG13.5 | 22 | 24.4 | 17 | 11.5 | 12.5 | 6.5 |
| 18021651 | PG 9 | 17 | 18.9 | 12.5 | 9.5 | 10.5 | 6 |
| 18021656 | PG29 | 40 | 43.5 | 32 | 15 | 16.5 | 8 |
| 18021655 | PG21 | 30 | 33.5 | 24 | 13.5 | 15 | 7 |
| 18021659 | PG48 | 64 | 69 | 52.5 | 21 | 23 | 10 |
| 18021658 | PG42 | 57 | 61 | 48 | 20 | 22 | 10 |
| 18021650 | PG 7 | 14 | 15.5 | 10 | 9 | 10 | 5 |
