Nickel-plated brass round adapters, metric to PG, standard thread
Application
Adapter
PG or metric
PG & metric
Material
Brass

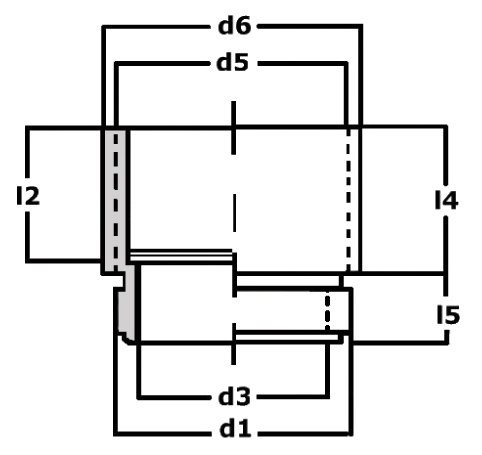

| Partnumber | Thread outside | Thread inside | Outer Ø | d3 | I2 | I4 | I5 |
|---|---|---|---|---|---|---|---|
| 18021560 | M12x1.5 | PG 7 | 14 | 8 | 9 | 10 | 5 |
| 18021565 | M25x1.5 | PG21 | 30 | 20 | 13.5 | 15 | 7 |
| 18021564 | M20x1.5 | PG16 | 24 | 15 | 12.5 | 13.5 | 6 |
| 18021569 | M63x1.5 | PG48 | 68 | 54 | 21 | 23 | 10 |
| 18021567 | M40x1.5 | PG36 | 50 | 35 | 17.5 | 19.5 | 8 |
| 18021566 | M32x1.5 | PG29 | 39 | 27 | 15 | 16.5 | 8 |
| 18021561 | M16x1.5 | PG 9 | 18 | 12 | 9.5 | 10.5 | 5 |
| 18021563 | M20x1.5 | PG13.5 | 22 | 15 | 11.5 | 12.5 | 6 |
| 18021568 | M50x1.5 | PG42 | 57 | 44 | 20 | 22 | 9 |
| 18021562 | M20x1.5 | PG11 | 22 | 15 | 10 | 11 | 6 |
