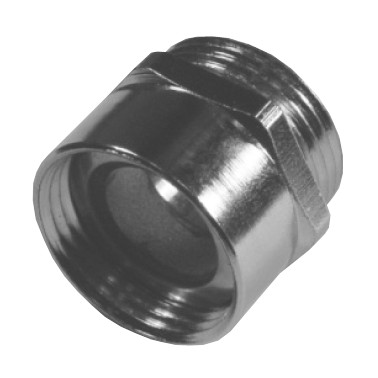

Nickel-plated brass hexagonal adapters, metric to PG, standard thread
Application
Adapter
PG or metric
PG & metric
Material
Brass

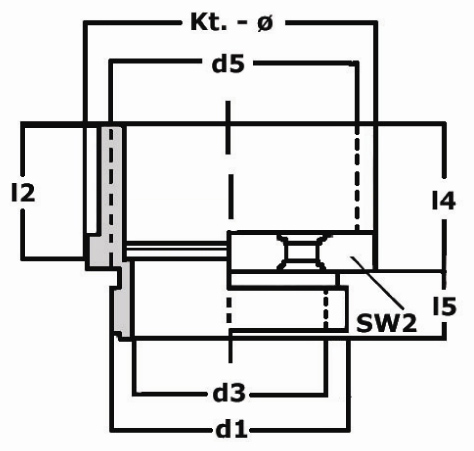

| Partnumber | Thread outside | Thread inside | SW | Outer Ø | d3 | I2 | I4 | I5 |
|---|---|---|---|---|---|---|---|---|
| 18021583 | M20x1.5 | PG13.5 | 22 | 24 | 15 | 11.5 | 12.5 | 6 |
| 18021586 | M32x1.5 | PG29 | 39 | 42.5 | 27 | 15 | 16.5 | 8 |
| 18021589 | M63x1.5 | PG48 | 66 | 70 | 54 | 21 | 23 | 10 |
| 18021582 | M20x1.5 | PG11 | 22 | 24 | 15 | 10 | 11 | 6 |
| 18021585 | M25x1.5 | PG21 | 30 | 33 | 20 | 13.5 | 15 | 7 |
| 18021580 | M12x1.5 | PG 7 | 14 | 15.5 | 8 | 9 | 10 | 5 |
| 18021581 | M16x1.5 | PG 9 | 18 | 20 | 12 | 9.5 | 10.5 | 5 |
| 18021587 | M40x1.5 | PG36 | 50 | 54 | 35 | 17.5 | 19.5 | 8 |
| 18021584 | M20x1.5 | PG16 | 24 | 26.2 | 15 | 12.5 | 13.5 | 6 |
| 18021588 | M50x1.5 | PG42 | 57 | 60 | 44 | 20 | 22 | 9 |
