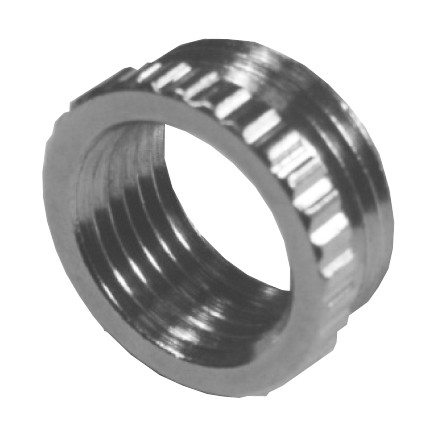

Nickel-plated brass adapters, metric to PG
Application
Adapter
PG or metric
PG & metric
Material
Brass

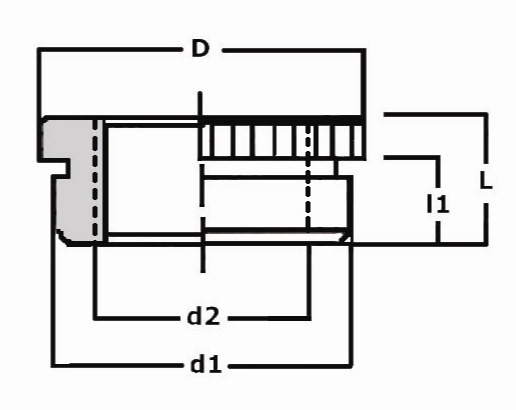

| Partnumber | Thread outside | Thread inside | Length of thread (I1) | D | L |
|---|---|---|---|---|---|
| 18009920 | M63x1.5 | PG42 | 10 | 66 | 14 |
| 18009912 | M25x1.5 | PG11 | 7 | 27 | 10 |
| 18009915 | M32x1.5 | PG16 | 8 | 34 | 11 |
| 18009918 | M50x1.5 | PG29 | 9 | 53 | 12.5 |
| 18009917 | M40x1.5 | PG21 | 8 | 43 | 11.5 |
| 18009914 | M25x1.5 | PG16 | 7 | 27 | 10 |
| 18009911 | M20x1.5 | PG 9 | 6 | 22 | 9 |
| 18009916 | M32x1.5 | PG21 | 8 | 34 | 11 |
| 18009913 | M25x1.5 | PG13.5 | 7 | 27 | 10 |
| 18009919 | M63x1.5 | PG36 | 10 | 66 | 14 |
| 18009910 | M16x1.5 | PG 7 | 5 | 18 | 7.5 |
