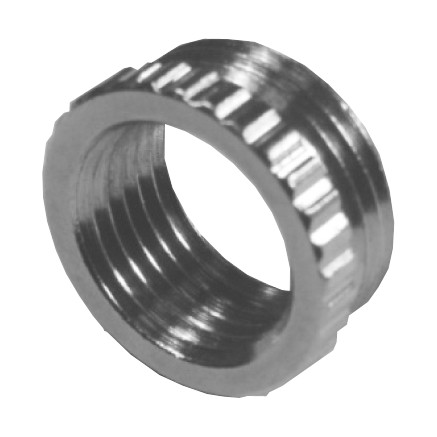

Nickel-plated brass PG round reduction adapters
Application
Adapter
PG or metric
PG
Material
Brass

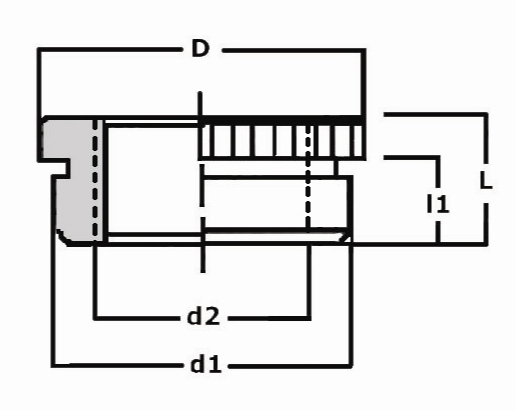

| Partnumber | Thread outside | Thread inside | Length of thread (I1) | D | L |
|---|---|---|---|---|---|
| 18009703 | PG42 | PG29 | 10 | 57 | 14 |
| 18007007 | PG21 | PG16 | 7 | 30 | 10 |
| 18009705 | PG48 | PG36 | 10 | 64 | 14 |
| 18009646 | PG13.5 | PG11 | 6.5 | 22 | 9 |
| 18009611 | PG11 | PG 9 | 6 | 20 | 8.5 |
| 18009638 | PG13.5 | PG 9 | 6.5 | 22 | 9 |
| 18009600 | PG 9 | PG 7 | 6 | 17 | 8.5 |
| 18009700 | PG29 | PG21 | 8 | 39 | 11.5 |
| 18009654 | PG16 | PG11 | 6.5 | 24 | 9.5 |
| 18009702 | PG36 | PG29 | 9 | 50 | 12.5 |
| 18009612 | PG13.5 | PG 7 | 6.5 | 22 | 9 |
| 18009706 | PG48 | PG42 | 10 | 64 | 14 |
| 18009698 | PG21 | PG13.5 | 7 | 30 | 10 |
| 18009701 | PG36 | PG21 | 9 | 50 | 12.5 |
| 18009620 | PG11 | PG 7 | 6 | 20 | 8.5 |
| 18009648 | PG16 | PG 9 | 6.5 | 24 | 9.5 |
| 18009699 | PG29 | PG16 | 8 | 39 | 11.5 |
| 18009704 | PG42 | PG36 | 10 | 57 | 14 |
| 18009696 | PG21 | PG11 | 7 | 30 | 10 |
| 18009697 | PG16 | PG13.5 | 6.5 | 24 | 9.5 |
| 18009647 | PG16 | PG 7 | 6.5 | 24 | 9.5 |
