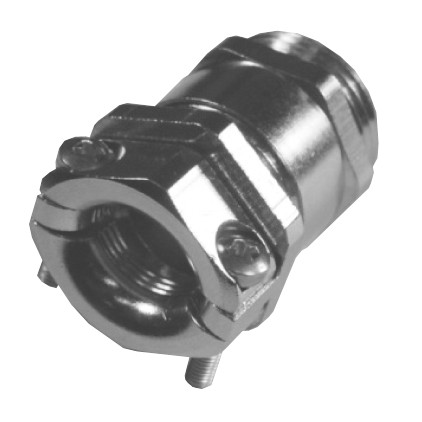

Nickel-plated brass metric cable glands, hexagonal lower part, pressing screw with central-acting strain-relief and bending protection. Universal rubber sealing ring
Application
Cable glands
PG or metric
Metric
Material
Brass
Sealing ring
Rubber
Protection
IP 54
Temperature
-30 to 80°C
| Partnumber | Cable diameter | Size | Clamping range |
|---|---|---|---|
| mm | |||
| 18021436 | 23 to 35 | M40x1.5 | 24 to 36 |
| 18021432 | 6.5 to 14 | M20x1.5 | 8.5 to 14 |
| 18021435 | 17 to 28 | M32x1.5 | 18 to 30 |
| 18021431 | 6.5 to 11.5 | M20x1.5 | 7.5 to 11.5 |
| 18021429 | 5 to 6 | M12x1.5 | 5 to 7 |
| 18021430 | 4 to 10 | M16x1.5 | 6.5 to 10 |
| 18021437 | 29 to 41 | M50x1.5 | 31 to 43 |
| 18021433 | 6.5 to 16 | M20x1.5 | 11 to 17 |
| 18021434 | 9 to 20 | M25x1.5 | 12 to 22 |
| 18021438 | 35 to 46 | M63x1.5 | 35 to 48 |
