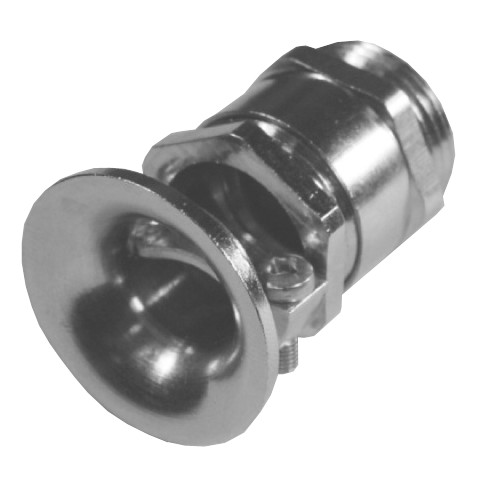

Nickel-plated brass metric cable glands, hexagonal lower part, with strain-relief and bending protection. Universal rubber sealing ring.
Application
Cable glands
PG or metric
Metric
Material
Brass
Sealing ring
Rubber
Protection
IP 54
Temperature
-30 to 80°C
| Partnumber | Cable diameter | Size | Clamping range |
|---|---|---|---|
| mm | |||
| 18021442 | 6.5 to 13.5 | M20x1.5 | 9 to 13.5 |
| 18021445 | 17 to 28 | M32x1.5 | 19 to 29 |
| 18021440 | 4 to 9 | M16x1.5 | 6 to 9 |
| 18021443 | 6.5 to 15.5 | M20x1.5 | 10 to 15.5 |
| 18021444 | 9 to 20 | M25x1.5 | 14 to 20 |
| 18021441 | 6.5 to 11.5 | M20x1.5 | 7.5 to 11.5 |
