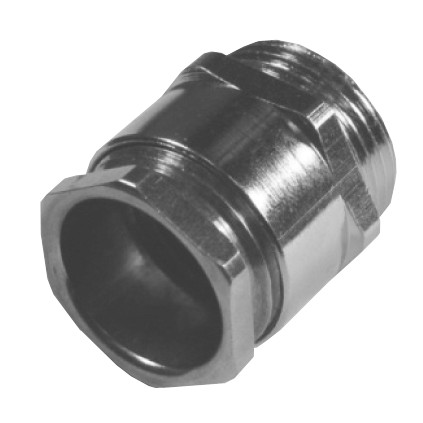

Nickel-plated brass metric cable glands, hexagonal lower part, standard length. Large clamping range, chloroprene sealing ring
Application
Cable glands
PG or metric
Metric
Material
Brass
Sealing ring
Chloroprene
Protection
IP 54
Temperature
-30 to 120°C
| Partnumber | Cable diameter | Size | Sealing ring int. Ø | Gland Ø |
|---|---|---|---|---|
| mm | ||||
| 18021318 | 3 to 14 | M20x1.5 | 4 | 18 |
| 18021323 | 40 to 51 | M63x1.5 | 41 | 66 |
| 18021319 | 7.5 to 18 | M25x1.5 | 8.5 | 27 |
| 18021322 | 31 to 42 | M50x1.5 | 32 | 52 |
| 18021317 | 2 to 10 | M16x1.5 | 3 | 14 |
| 18021321 | 22 to 33 | M40x1.5 | 23 | 42 |
| 18021316 | 4 to 6 | M12x1.5 | 5 | 22 |
| 18021320 | 15 to 25 | M32x1.5 | 16 | 34 |
