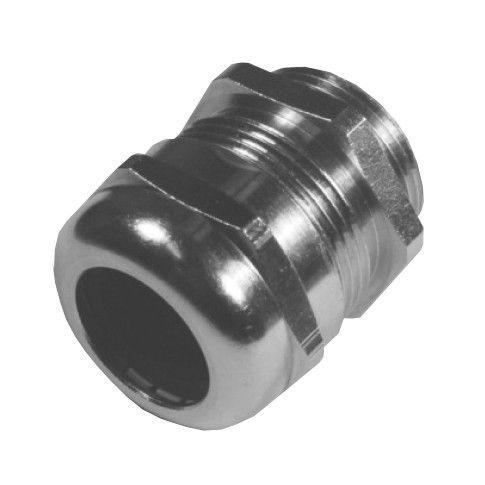

Nickel-plated brass metric cable glands, hexagonal lower part, IP68 / 5 bar. With special sealing and variable inserts, O-ring at external thread. Gas and watertight. Resistant to oil, weather, ageing. High mechanical resistance
Application
Cable glands
PG or metric
Metric
Material
Brass
Protection
IP 68
Resistant against
Ageing Gas Mechanical stress Oil Water Weather
Temperature
-40 to 120°C
| Partnumber | Cable diameter | Size | SW | Length of thread (I1) |
|---|---|---|---|---|
| mm | ||||
| 18021492 | 26 to 28 | M40x1.5 | 44 | 8 |
| 18021487 | 5 to 7 | M12x1.5 | 14 | 5 |
| 18021494 | 45 to 49 | M63x1.5 | 66 | 10 |
| 18021506 | 39 to 44 | M63x1.5 | 66 | 10 |
| 18021491 | 19 to 22 | M32x1.5 | 34 | 8 |
| 18021505 | 34 to 38 | M63x1.5 | 66 | 10 |
| 18021488 | 8 to 10 | M16x1.5 | 17 | 5.5 |
| 18021489 | 12 to 14 | M20x1.5 | 22 | 6 |
| 18021493 | 28 to 36 | M50x1.5 | 55 | 9 |
| 18021490 | 16 to 19 | M25x1.5 | 30 | 7 |
