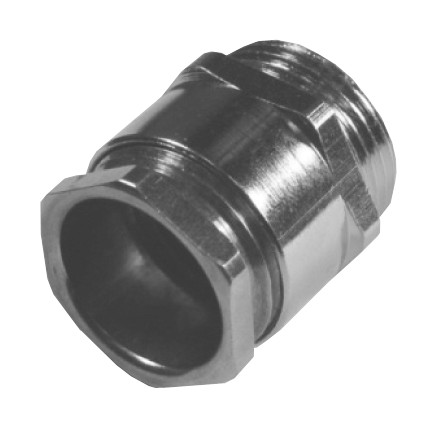

Nickel-plated brass metric cable glands, hexagonal lower part, standard length. Rubber sealing ring
Application
Cable glands
PG or metric
Metric
Material
Brass
Sealing ring
Rubber
Protection
IP 54
Temperature
-30 to 80°C
| Partnumber | Cable diameter | Size | Sealing ring int. Ø |
|---|---|---|---|
| mm | |||
| 18021404 | 12 to 14 | M20x1.5 | 13 |
| 18021407 | 33 to 35 | M40x1.5 | 34 |
| 18021400 | 4 to 6 | M12x1.5 | 5 |
| 18021401 | 8 to 10 | M16x1.5 | 9 |
| 18021406 | 26 to 27 | M32x1.5 | 27 |
| 18021409 | 43 to 45 | M63x1.5 | 44 |
| 18021408 | 39 to 41 | M50x1.5 | 40 |
| 18021405 | 17 to 19 | M25x1.5 | 18 |
| 18021402 | 8 to 10 | M20x1.5 | 9 |
| 18021403 | 10 to 12 | M20x1.5 | 11 |
