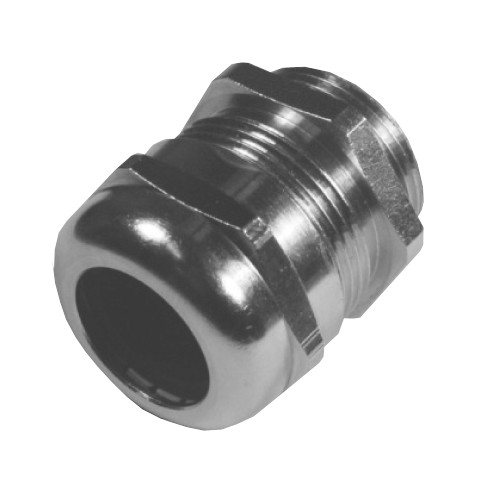

Nickel-plated brass metric cable glands, hexagonal lower part, IP68 / 5 bar. With strain-relief, completely insulated, with O-ring at external threat
Application
Cable glands
PG or metric
Metric
Material
Brass
Sealing ring
NBR
Protection
IP 68
Temperature
-20 to 100°C
| Partnumber | Cable diameter | Size | SW | Length of thread (I1) |
|---|---|---|---|---|
| mm | ||||
| 18021450 | 6 to 12 | M20x1.5 | 22 | 6 |
| 18021447 | 3 to 6.5 | M12x1.5 | 14 | 5 |
| 18021459 | 19 to 25 | M50x1.5 | 55 | 9 |
| 18021453 | 11 to 18 | M25x1.5 | 30 | 7 |
| 18021462 | 27 to 38 | M63x1.5 | 66 | 10 |
| 18021446 | 2 to 5 | M12x1.5 | 14 | 5 |
| 18021460 | 21 to 29 | M50x1.5 | 55 | 9 |
| 18021458 | 19 to 27 | M40x1.5 | 44 | 8 |
| 18021451 | 8 to 13 | M20x1.5 | 22 | 6 |
| 18021456 | 12 to 18 | M40x1.5 | 44 | 8 |
| 18021449 | 5.5 to 10 | M16x1.5 | 17 | 5.5 |
| 18021461 | 26 to 35 | M50x1.5 | 55 | 9 |
| 18021452 | 8 to 15 | M25x1.5 | 30 | 7 |
| 18021448 | 3 to 8 | M16x1.5 | 17 | 5.5 |
| 18021463 | 39 to 48 | M63x1.5 | 66 | 10 |
| 18021455 | 15 to 21 | M32x1.5 | 34 | 8 |
| 18021454 | 13 to 19 | M32x1.5 | 34 | 8 |
| 18021457 | 16 to 23 | M40x1.5 | 44 | 8 |
