Nickel-plated brass round metric adapters, standard thread
Application
Adapter
PG or metric
Metric
Material
Brass

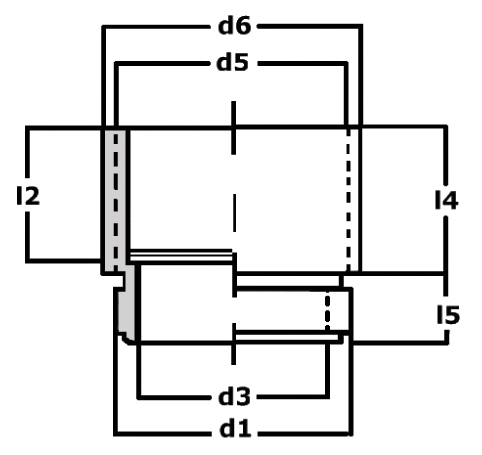

| Partnumber | Thread outside | Thread inside | Outer Ø | d3 | I2 | I4 | I5 |
|---|---|---|---|---|---|---|---|
| 18021520 | M12x1.5 | M12x1.5 | 14 | 8 | 9 | 10 | 5 |
| 18021523 | M25x1.5 | M25x1.5 | 27 | 20 | 13.5 | 14.5 | 7 |
| 18021524 | M32x1.5 | M32x1.5 | 34 | 27 | 15 | 16.5 | 8 |
| 18021522 | M20x1.5 | M20x1.5 | 22 | 15 | 11.5 | 12.5 | 6 |
| 18021526 | M50x1.5 | M50x1.5 | 52 | 44 | 17.5 | 19.5 | 9 |
| 18021525 | M40x1.5 | M40x1.5 | 42 | 35 | 16.5 | 18 | 8 |
| 18021521 | M16x1.5 | M16x1.5 | 18 | 12 | 9.5 | 10.5 | 5 |
| 18021527 | M63x1.5 | M63x1.5 | 66 | 57 | 20 | 22 | 10 |
