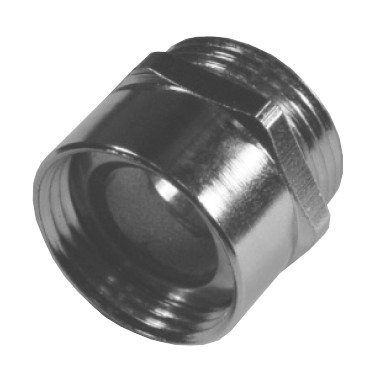

Nickel-plated brass hexagonal metric adapters, standard thread
Application
Adapter
PG or metric
Metric
Material
Brass

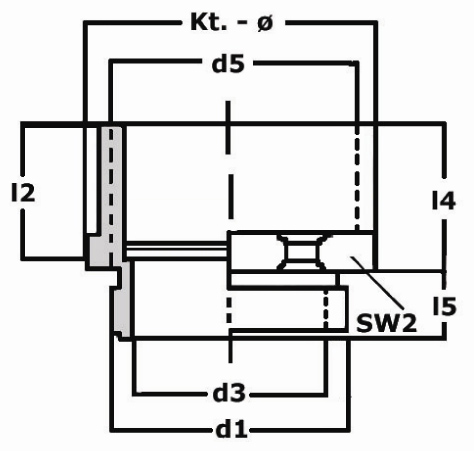

| Partnumber | Thread outside | Thread inside | SW | Outer Ø | d3 | I2 | I4 | I5 |
|---|---|---|---|---|---|---|---|---|
| 18021538 | M20x1.5 | M20x1.5 | 22 | 24 | 15 | 11.5 | 12.5 | 6 |
| 18021540 | M32x1.5 | M32x1.5 | 34 | 37 | 27 | 15 | 16.5 | 8 |
| 18021537 | M16x1.5 | M16x1.5 | 18 | 20 | 12 | 9.5 | 10.5 | 5 |
| 18021543 | M63x1.5 | M63x1.5 | 66 | 70 | 57 | 20 | 22 | 10 |
| 18021539 | M25x1.5 | M25x1.5 | 27 | 29 | 20 | 13.5 | 14.5 | 7 |
| 18021542 | M50x1.5 | M50x1.5 | 52 | 56 | 44 | 17.5 | 19.5 | 9 |
| 18021536 | M12x1.5 | M12x1.5 | 14 | 15.5 | 8 | 9 | 10 | 5 |
| 18021541 | M40x1.5 | M40x1.5 | 42 | 46 | 35 | 16.5 | 18 | 8 |
