Nickel-plated brass metric reduction adapters
Application
Adapter
PG or metric
Metric
Material
Brass

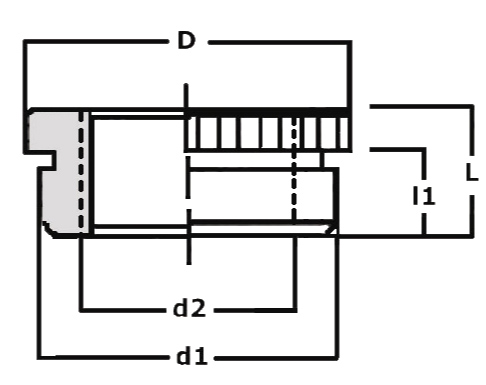

| Partnumber | Thread outside | Thread inside | Length of thread (I1) | D | L |
|---|---|---|---|---|---|
| 18009799 | M50x1.5 | M32x1.5 | 9 | 53 | 12.5 |
| 18009785 | M32x1.5 | M20x1.5 | 8 | 34 | 11 |
| 18009801 | M63x1.5 | M40x1.5 | 10 | 66 | 14 |
| 18009781 | M20x1.5 | M12x1.5 | 6 | 22 | 9 |
| 18009800 | M50x1.5 | M40x1.5 | 9 | 53 | 12.5 |
| 18009796 | M32x1.5 | M25x1.5 | 8 | 34 | 11 |
| 18009780 | M16x1.5 | M12x1.5 | 5 | 18 | 7.5 |
| 18009797 | M40x1.5 | M25x1.5 | 8 | 43 | 11.5 |
| 18009782 | M20x1.5 | M16x1.5 | 6 | 22 | 9 |
| 18009802 | M63x1.5 | M50x1.5 | 10 | 66 | 14 |
| 18009784 | M25x1.5 | M20x1.5 | 7 | 27 | 10 |
| 18009798 | M40x1.5 | M32x1.5 | 8 | 43 | 11.5 |
| 18009783 | M25x1.5 | M16x1.5 | 7 | 27 | 10 |
