Stand-off hexagonal, 2x external thread
Type
Round
Thread
External
Material
Glassfibre reinforced polyester

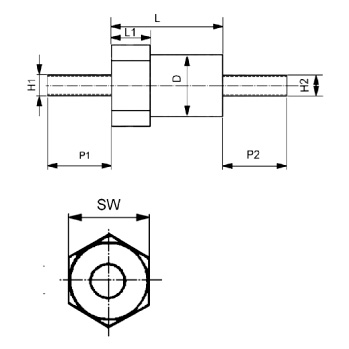

| Partnumber | Length (L) | P1 | P2 | SW | D |
|---|---|---|---|---|---|
| 27209213 | 11 | M3x10 | M3x10 | 11 | 11 |
| 27209222 | 26 | M8x20 | M8x8 | 21 | 20 |
| 27209223 | 35 | M8x10 | M8x15 | 21 | 20 |
| 27209214 | 14 | M3x10 | M3x10 | 14 | 14 |
| 27209212 | 12 | M3x5 | M3x5 | 10 | 10 |
| 27209215 | 14 | M4x10 | M3x10 | 14 | 14 |
| 27209219 | 14 | M6x10 | M6x10 | 14 | 14 |
| 27209220 | 14 | M6x10 | M6x15 | 14 | 14 |
| 27209221 | 26 | M5x10 | M5x10 | 14 | 14 |
| 27209216 | 14 | M4x10 | M4x10 | 14 | 14 |
| 27209217 | 14 | M4x10 | M6x10 | 14 | 14 |
| 27209218 | 14 | M5x10 | M5x10 | 14 | 14 |
