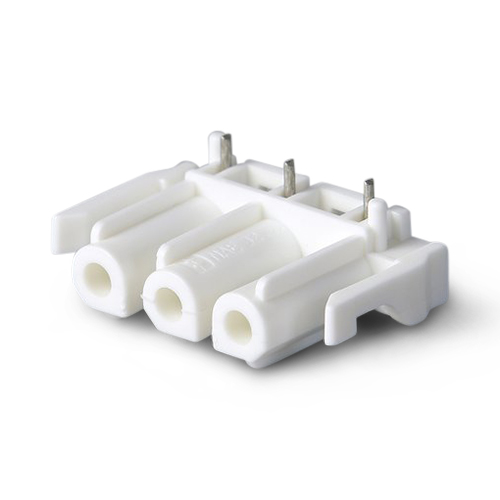

3-Pole PCB-couplers, socket
Pole number
3
Housing configuration
Socket
Approvals
Majority of EnstoNet connectors comply to UL, Lloyd's and DNV. Please check for details
| Partnumber | Colour | Pole marking | Type | Position |
|---|---|---|---|---|
| 10636467 | White | 1, PE, N | NAE 32VH2.W | Vertical |
| 10636466 | White | 1, PE, N | NAE 32V.W | Vertical |
| 10636472 | Blue | A, B, C | NBE 32H.S | Horizontal |
| 10636474 | Grey | a+, PE, b- | NCE 32V.G | Vertical |
| 10636469 | White | 1, PE, N | NAE 32HH2.W | Horizontal |
| 10636468 | White | 1, PE, N | NAE 32VH.W | Vertical |
| 10636470 | Blue | A, B, C | NBE 32V.S | Vertical |
| 10636475 | Grey | a+, PE, b- | NCE 32VH1.G | Horizontal |
| 10636477 | Grey | a+, PE, b- | NCE 32HH1.G | Horizontal |
| 10636473 | Blue | A, B, C | NBE 32HH1.S | Horizontal |
| 10636471 | Blue | A, B, C | NBE 32VH1.S | Horizontal |
| 10636476 | Grey | a+, PE, b- | NCE 32H.G | Horizontal |
