Vibration and shock damping spacers
Material
TPE
Colour
Black
Panel thickness
1.8 to 7.9mm
Top hole
Press-fit: 6.35
Bottom hole
Press-fit: 6.35

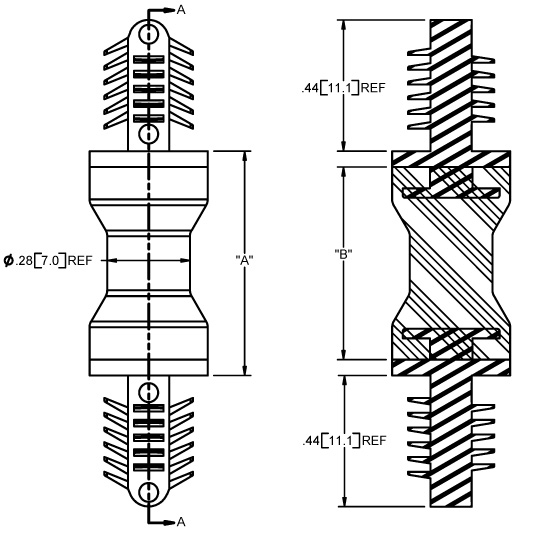

| Partnumber | A | B | Target Load |
|---|---|---|---|
| 26860216 | 24.7 | 22 | 4.4 |
| 26860217 | 30.7 | 28 | 4.4 |
| 26860215 | 18.5 | 16.3 | 4.4 |
